Drum Heater

These Drum Heaters are designed for a variety of applications. A Drum Heater – also called band heater, barrel heater, container heater or canister heater- is used to reduce viscosity of liquids and gels by heating in order to fill, pump or bottle the respective liquid or to prevent liquids from freezing inside the drum. Typical liquids for the bottling application are tar, varnish, resin, grease, chocolate or galantine.

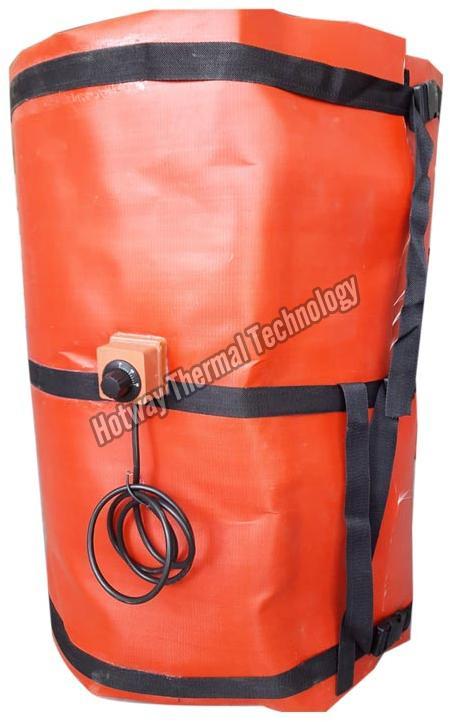

Flexible Jacket type drum heater are available for any size of drums.

• Flexible Jacket type drum heater with thermostat control
• Wattage – 2500 – 3000 Watt
• Volt – 230 Volt AC
• Available in Single phase / 3 Phase

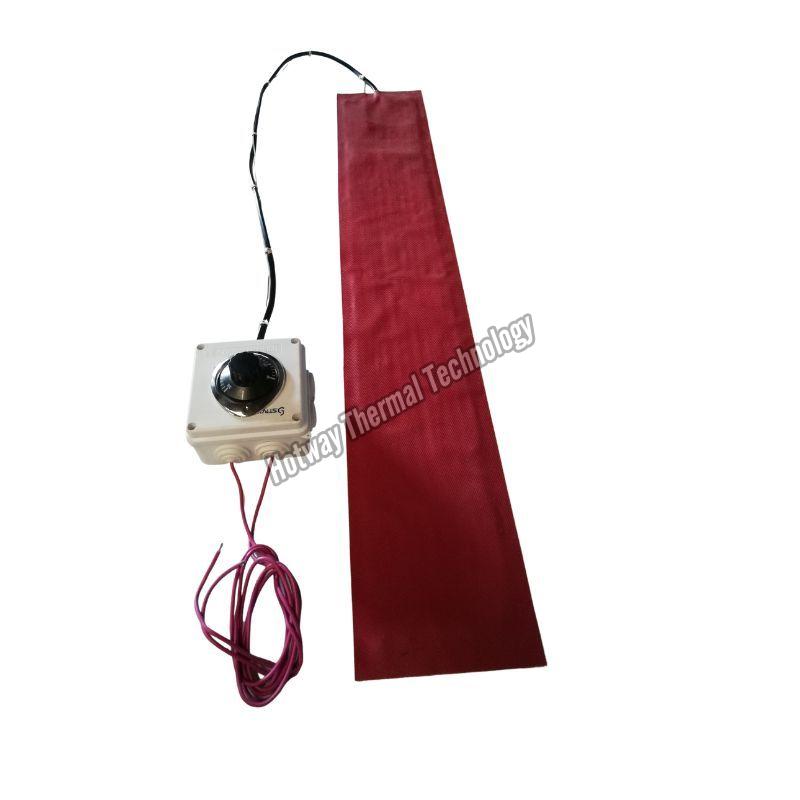

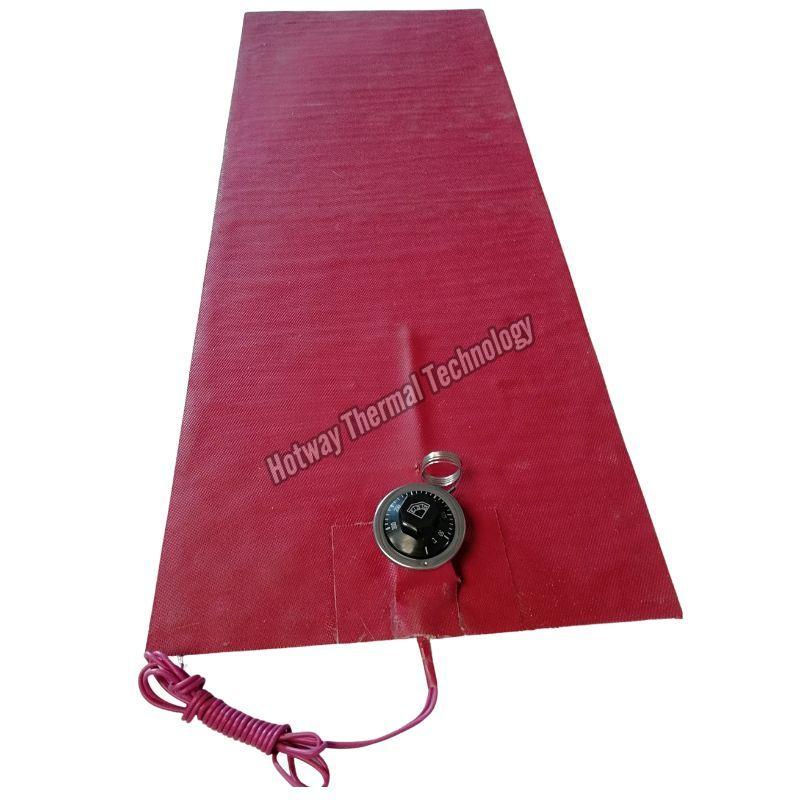

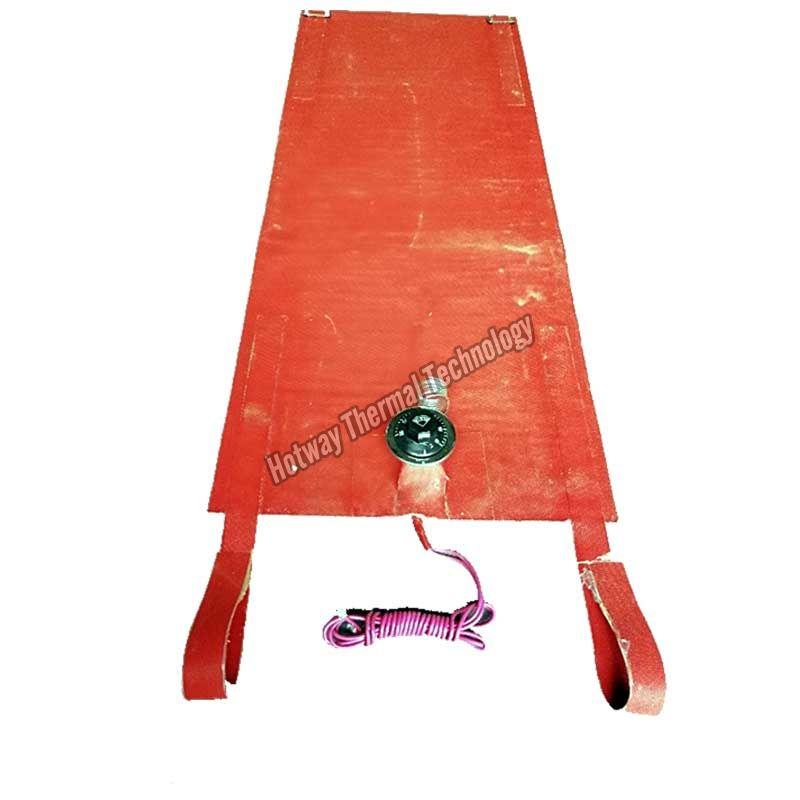

Flexible Silicon pad drum heater of this type have an isolated heating element embedded in a glass fibre mat. Silicone coated drum heaters are suitable for steel drums, whereas polyester coatings at lower temperatures can be used for plastic containers. As these heaters are flexible and wrap around the container they also called band heaters. Up to three band heaters can be applied to a standard 200 litre barrel.

There is no additional insulation so heat is lost by radiation into the surrounding air and the surface temperatures can be hot enough to burn unprotected hands.

• Flexible Silicon pad drum heater with thermostat control
• Wattage – 1000 – 2000 Watt
• Volt – 110/230 Volt AC
• Available in Single phase
• Size – 4, 6 inch in width for 200 Litre drum and as per requirement.
